Characteristics

Our original high precision proximity sensor.
Various shapes are available depending on the mounting of the press and molds.

You can download the external dimensions of each product.
*Select “Right click=Save the object into file” to save the data in a file.

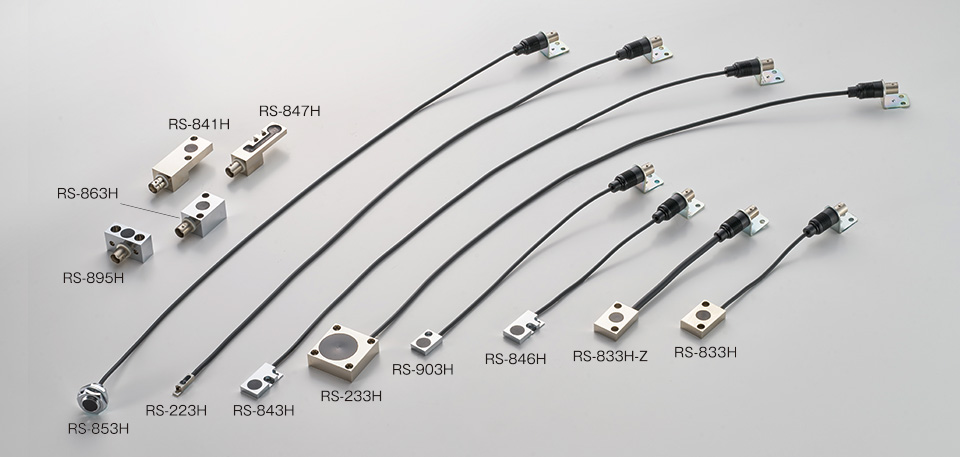

Model External Dimensions Model used Features
RS−223H RS−223H(145kb) RM-2305/RM-2505
RM-7302/RM-7304
RM-2412/RM-2414
Micro/wire length 500 mm
RS−233H RS−233H(148kb) Large/wire length 500 mm
RS−833H RS−833H(148kb) RM-6302 (Overseas only)
RM-1310
RM-2305/RM-2505
RM-7302/RM-7304
RM-2412/RM-2414
Standard type/Line length 100 mm
*Product accessories
RS−833H−Z RS−833H-Z(104kb) RS-833H Same shape/Cable diameter Φ5.3
RS−841H RS−841H(86kb) RM-2305/RM-2505
RM-7302/RM-7304
RM-2412/RM-2414
L type/without cable
RS−843H RS−843H(147kb) Thin/wire length 500 mm
RS−846H RS−846H(148kb) Thin/wire length 130mm
RS−847H RS−847H(86kb) L type/without cable/Thin
RS−853H RS−853H(106kb) Round/wire length 500 mm
RS−863H RS−863H(85kb) Embedding type
RS−895H RS−895H(85kb) Without cable
RS−903H RS−903H(104kb) Small and Thin/wire length 200mm

■Custom-made sensor cables are also available.

■ Relay cables are also available in various lengths.

Model Features Remarks
RS−833C 3m Cable
RS−835C 5m Cable Standard relay cable is included with the product.
RS−836C 6m Cable
RS−837C 7m Cable
RS−838C 8m Cable
RS−83AC 10m Cable

Due to product improvements, some specifications may change without prior notice.
