Load monitoring device

NEW SELBER VLRM-7402 / RM-7404

<span>NEW SELBER VL</span>RM-7402 / RM-7404

Characteristics

  • ●Ideal for die height adjustment
  • ●Monitor mode: peak value / waveform monitoring functions equipped
  • ●Collects data remotely with wireless communication (Bluetooth)
  • ●Can record last 8 shots waveform data before error detection

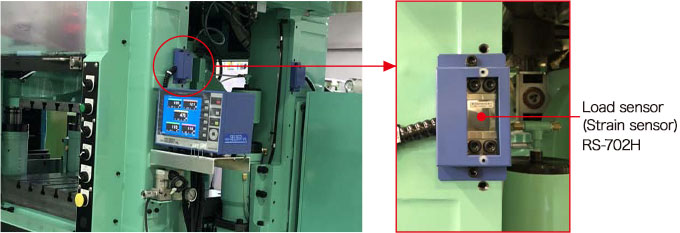

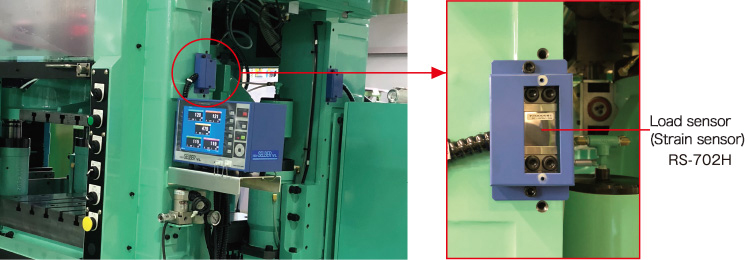

Installation

Specifications

NameNEW SELBER VL
ModelRM-7402(2ch) / RM-7404(4ch)
Compatible sensorRS-702H (sold separately)
range of detection1KN ~ 30000KN / 1t ~ 3000t (Switch by setting)
Monitoring methodPrevious value comparison/Reference value monitoring/Waveform comparison
Monitoring range±9999kN 1kN step (±999t 1t step) with reference value/previous value
±99% with reference waveform
Input3 points, non-voltage NPN open collector output or contact input
Timing input Non-voltage NPN or PNP open collector output or contact input
Output2 points, relay contact (C contact) NC-C-NO AC250V 2A Max. (Resistive load)
Power supply for timing signal DC12V 250mA Max.
Maximum number of rotations that can be monitored3000spm
Operating Temperature Limit0-50℃ (No Condensation)
Ambient atmosphere when usedFree from corrosive gas and dust
Power supplyAC100V-240V 50/60Hz
WeightMain Unit: Approx. 3.8kg Mounting angle: Approx. 1.7kg
External Dimensions260 (W) x 170 (H) x 136 (D) mm (excluding terminal block and other protrusions)
DisplayColor TFT LCD (7.5-inch) Number of dots Horizontal 640 x Vertical 480
Backlight life 50,000 hours (Typ.)

*The specifications and the contents described in this instruction manual are subject to change without prior notice.
