Characteristics

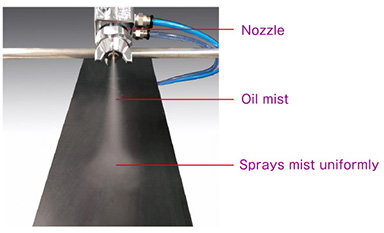

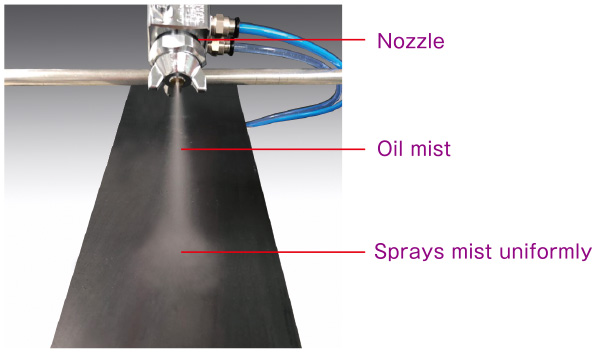

- ●Stable mist spray for low cost
- ●Ideal for precision work with electronic control
- ●Highly versatile, can be attached to various kinds of press
- ●Controls max 4 nozzles to 1 device
- ●Selection of nozzle （option）, spray patterns, machining oil etc. in accordance with process materials
- ●Reduces machining oil and extends punch life by preventing mist scattering and spraying small amounts
A nozzle Example （RS-5）
（Options available）
A nozzle Example （HM-6）
（Options available）
応用例

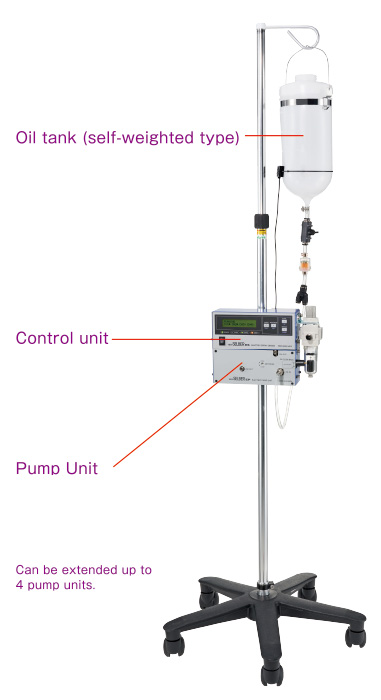

■ Example of self-weighted oil mist unit

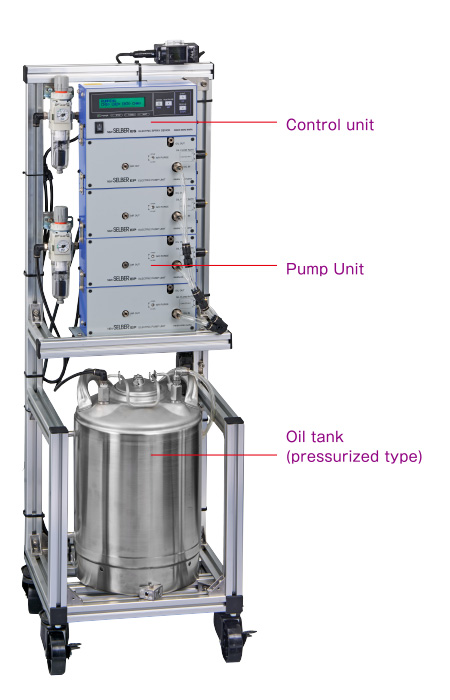

■ Example of pressurized oil mist unit
Specifications
| Name | NEW SELBER ES |
| Model | RM-1601 |
| Power supply voltage | AC100V～240V |
| External dimensions | W200×H90×D70mm（Excluding protrusions） |
| Relay contact output/signal input | 1 output/3 inputs |
| Spray mode | External timing/internal timing |
| Weight | 2.50kg（The packing weight including the attachment） |
| Name | NEW SELBER EP |
| Model | RM-1602 |
| External dimensions | W200×H85×D70mm（Excluding protrusions） |
| Installation | Ф25mm or more pole installed（Option: placement angle） |
| Weight | 2.30kg（The packing weight including the attachment） |
*The specifications and the contents described in this instruction manual are subject to change without prior notice.
