Error Detector

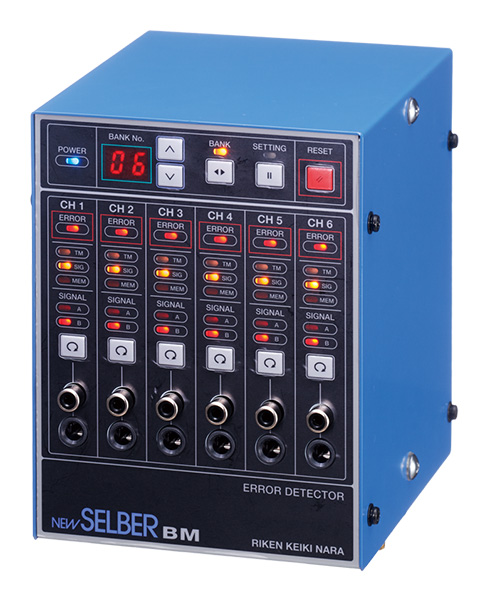

NEW SELBER BMRM-2704

<span>NEW SELBER BM</span>RM-2704

Characteristics

  • ●Ideal for die protection (Ideal to detect miss feed and output errors)
  • ●Setting record function installed (99 settings)
  • ●Can use commercially available sensors to receive various signals

Free to combine! IoT with B series

Specifications

NameNEW SELBER BM
ModelRM-2704
Detection mode6 types Miss feed, discharge, memory, synchronization, contact, separation
Input4 points, non-voltage NPN open collector output or contact input
Timing input Non-voltage NPN or PNP open collector output or contact input
Signal input Non-voltage NPN or PNP open collector output or contact input
Output2 points, relay contact (C contact) NC-C-NO AC250V 2A Max. (Resistive load)
DC OUT　DC12V　0.9A Max.
External terminalSignal input RCA jack x 6, φ6.3-3P jack x 6
Rear input/output terminal Terminal block M3.5
Maximum number of rotations that can be monitored3000spm
Operating Temperature Limit0-50℃ (No Condensation)
Ambient atmosphere when usedFree from corrosive gas and dust
Power supplyAC100V-240V 50/60Hz
WeightMain Unit: Approx. 1.6kg
External Dimensions120 (W) x 154 (H) x 140 (D) mm (excluding terminal block and other protrusions)
For sensor power supplyDC12V each CH 0.5A Max.

*The specifications and the contents described in this instruction manual are subject to change without prior notice.
