Slug (Scrap) detector

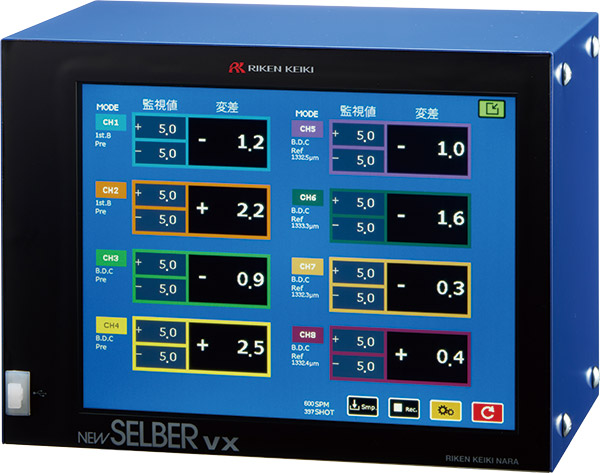

NEW SELBER VXRM-7312 / RM-7314 / RM-7316 / RM-7318

<span>NEW SELBER VX</span>RM-7312 / RM-7314 / RM-7316 / RM-7318

Characteristics

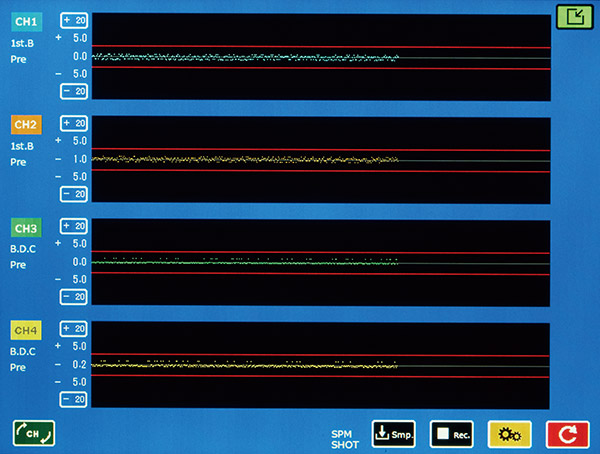

  • •High-precision monitoring

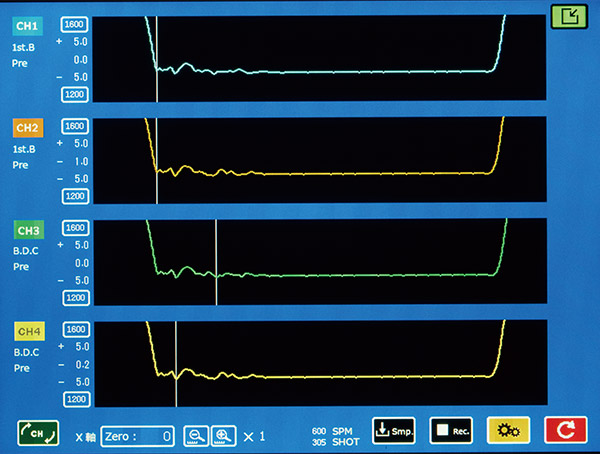

    High-resolution sensor input ensures reliable detection of even minute changes in bottom dead center displacement.

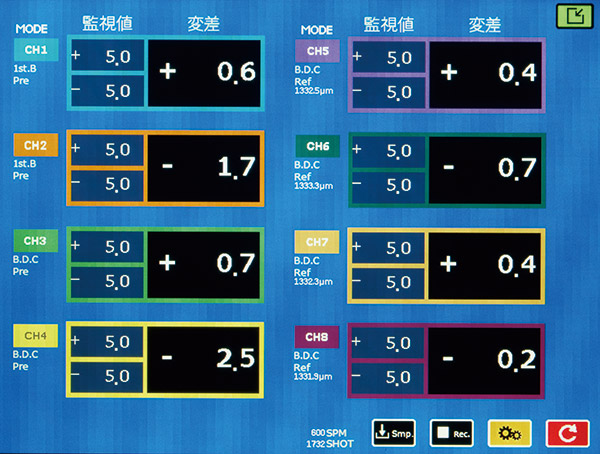

  • •Multi-channel capability
    Supports up to 8 channels, enabling multi-point monitoring and multiple processes.
  • •Intuitive operation
    The touchscreen display offers excellent visibility and easy settings, streamlining setup operations.

Specifications

NameNEW SELBER VX
ModelRM-7312 / RM-7314 / RM-7316 / RM-7318
Power supply voltageAC100–240V(DC24V available as an option)
External dimensionsW270×H200×D165mm (excluding protrusions and mounting brackets)
Maximum usable speed4500spm
WeightRM-7318:9.4kg / RM-7316:8.8kg / RM-7314:8.2kg / RM-7312:7.6kg /
※Weight including accessories and packaging

*The specifications and the contents described in this instruction manual are subject to change without prior notice.
