Load monitoring device

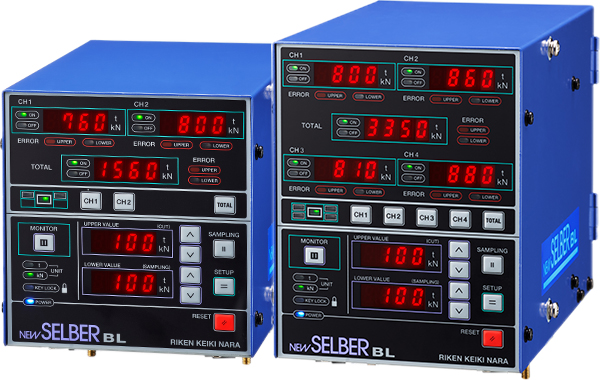

NEW SELBER BLRM-2112 / RM-2114

<span>NEW SELBER BL</span>RM-2112 / RM-2114

Characteristics

  • ●Ideal for die height adjustment
  • ●Analog output function installed


*Load sensor: RS-702H

Specifications

NameNEW SELBER BL
ModelRM-2112(2ch) / RM-2114(4ch)
Compatible sensorRS-702H (sold separately)
Monitoring methodReference value comparison
Monitoring range±9999kN 1kN step (±999t 1t step) to the reference value
Input2 points, non-voltage NPN open collector output (Drive current 5mA or more) or contact input
Timing input Non-voltage NPN or PNP open collector output or contact input
OutputRelay contact (C contact) NC-C-NO AC250V 2A Max. (Resistive load)
Power supply for timing signal DC12V 250mA Max.
Maximum number of rotations that can be monitored3000spm
Operating Temperature Limit0-50℃ (No Condensation)
Ambient atmosphere when usedFree from corrosive gas and dust
Power supplyAC100V-240V 50/60Hz
Weight2ch: Approx. 1.5kg/4ch: Approx. 1.6Kg Mounting angle: Approx. 0.8kg
External Dimensions120(W)×125(H)×200(D)mm(RM-2112)
120(W)×154(H)×200(D)mm(RM-2114)
(Excluding terminal block and other protrusions)

*The specifications and the contents described in this instruction manual are subject to change without prior notice.
